Getting Started with CARS-spectra Calculation

The NTECARS code works around the CARSSimulator object, which contains all data necessary to calculated a CARS spectrum. This object is required both for the forward calculation of a CARS spectrum but also to fit. When fitting, the CARSSimulator object is the starting point and gets iteratively modified.

Spectra struct

All CARS spectra, laser profiles and instrumental profiles are Spectrum objects. For the laser profiles and instrumental profile, the code implements constructors for different profiles like Gaussian, or Voigt profiles. Otherwise, the Spectrum has to be created from discrete data. A Spectrum can be constructed from either wavelengths (m) and intensities as an input:

λ  = [404e-9, 405e-9, 406e-9]
I  = [0.0, 1.0, 0.0]
s  = Spectrum(λ, I, :wavelength)

or Spectrum can be constructed from wavenumbers (cm¹) and intensities as an input:

ν  = [20000, 21000, 22000]
I  = [0.0, 1.0, 0.0]
s  = Spectrum(ν, I, :wavenumber)

When working with structs it is recommended to use the getter-functions which automatically handle unit conversions or normalizations

ν  = wavenumbers(s)
λ  = wavelengths(s)
I  = intensities(s)
I  = intensities(s, normalization = :maximum)
I  = intensities(s, normalization = :sum)

GasConditions

The bulk-gas parameters of pressure (Pa) and translational temperature (K) are used for the calculation and stored in GasConditions:

conditions = GasConditions(
    pressure = 15000.0, # in Pa
    T_gas    = 600.0    # in K
)

LaserConfiguration

Information about the wavelengths and profiles of the lasers is stored in LaserConfiguration. The minimum inputs are the central wavelengths of laser 1 and laser 2 and the spectral range of the Stokes-laser that determines the evaluated anti-Stokes frequencies. All inputs are in units of wavelength (m):

lasers = LaserConfiguration(
    wavelength_1    = 532e-9,
    wavelength_2    = 561e-9,
    stokes_range    = (600e-9, 610e-9)
)

optional arguments are profile_1, profile_2 which are DeltaProfile() by default and the stokes_profile which is FlatProfile() be default. All three profiles can be passed a custom Spectrum. The narrow laser profiles profile_1, profile_2 should be centerd around 0.0 and the stokes_profile should be at the correct absolute wavelength. For the convolutions, the profiles are interpolated, so they dont have to be defined at specific points. An example is:

lasers = LaserConfiguration(
    wavelength_1    = 532e-9,
    wavelength_2    = 561e-9,
    stokes_range    = (600e-9, 610e-9),
    profile_1       = Gaussian(0.2), # inputs are σ
    profile_2       = Voigt(0.1, 0.05), # inputs are σ, γ
    stokes_profile  = Spectrum([600e-9, 605e-9, 610e-0], [0.0, 1.0, 0.0], :wavelength)
)

Instrumental Broadening

just like in the LaserConfiguration, the instrumental profile can be a custom Spectrum, which should be centered around 0.0 or be passed pre-implemted profiles such as Gaussian or Voigt. By default, teh instrumental profile is a DeltaProfile() e.g. it introduces no broadening.

instrument = InstrumentConfiguration(
    profile = Gaussian(0.1/2.35)
)

Molecular species

Each molecule is represented in the code as a struct. The minimum for their construction is a molar fraction and a distribution

N2_species  = N2Species(
    molar_fraction = 0.9,
    distribution = N2.MultiTemperatureDistribution(T_vib = 2200.0, T_rot = 600.0),
)

CO2_species = CO2Species(
    molar_fraction = 0.1,
    distribution = CO2.MultiTemperatureDistribution(T_12 = 600.0, T_3 = 1800.0, T_rot = 600.0),
)

Here distribution functions can be set to different functions. For the implementation of custom distribution functions, please check the implementation of the current ones. They need to be structs that are subtypes of the abstract types CO2Distribution and N2.distribution respecitvely, and be callable as distribution(state) where state is a CO2.State or N2.State respectively. Especially for CO2, the calculation time of a spectrum rapidly increases with the maximum quantum numbers evaluated for a spectrum increasing. For this reason, the maximum quantum numbers considered for each spectrum can be set as an input. Furthermore if required, the non-resonant susceptibility can be changed. An example is:

N2_species  = N2Species(
    molar_fraction = 0.9,
    distribution = N2.FreeVibrationalDistribution(delta_f_vib = [0.9, 0.09, 0.01],
                        T_rot = 600.0, closure = :temperature_extrapolation),
    v_max = 3,
    J_max = 50,
    chi_non_resonant = 4.2e-51
)

CO2_species = CO2Species(
    molar_fraction = 0.1,
    distribution = CO2.MultiTemperatureDistribution(T_12 = 600.0, T_3 = 1800.0, T_rot = 600.0),
    v_max = (1,2,1),  # v1, v2, v3
    J_max = 80,
    chi_non_resonant = 4.5e-51
)

CARSSimulator

Finally, the created GasConditions, LaserConfiguration, InstrumentConfiguration and molecules such as N2Species and CO2Species are stored in the CARSSimulator struct

sim  = CARSSimulator(
    species    = [CO2_species, N2_species],
    conditions = conditions,
    lasers     = lasers,
    instrument = instrument,
)

Calculation of spectrum

A spectrum is simply evaluated from the CARSSimulator using

synthetic_spectrum = simulate_spectrum(sim)

which returns a Spectrum containing the anti-Stokes wavenumbers and a intensity (not sqrt) of the anti-Stokes beam.

with_theme(theme_latexfonts()) do
    fig = Figure(size = (1000, 700), fontsize = 40, figure_padding = 30)
    ax = Axis(fig[1,1],
        limits = ((494, 499), (-0.02, 1.1)),
        xlabel = L"$\mathrm{λ_{aS} \, (nm)}$",
        ylabel = L"$\mathrm{(CARS \, intensity)^{1/2}}$"
    )
    lines!(ax, 1e9 .* wavelengths(synthetic_spectrum), sqrt.(intensities(synthetic_spectrum, normalization = :maximum)))
    fig
end

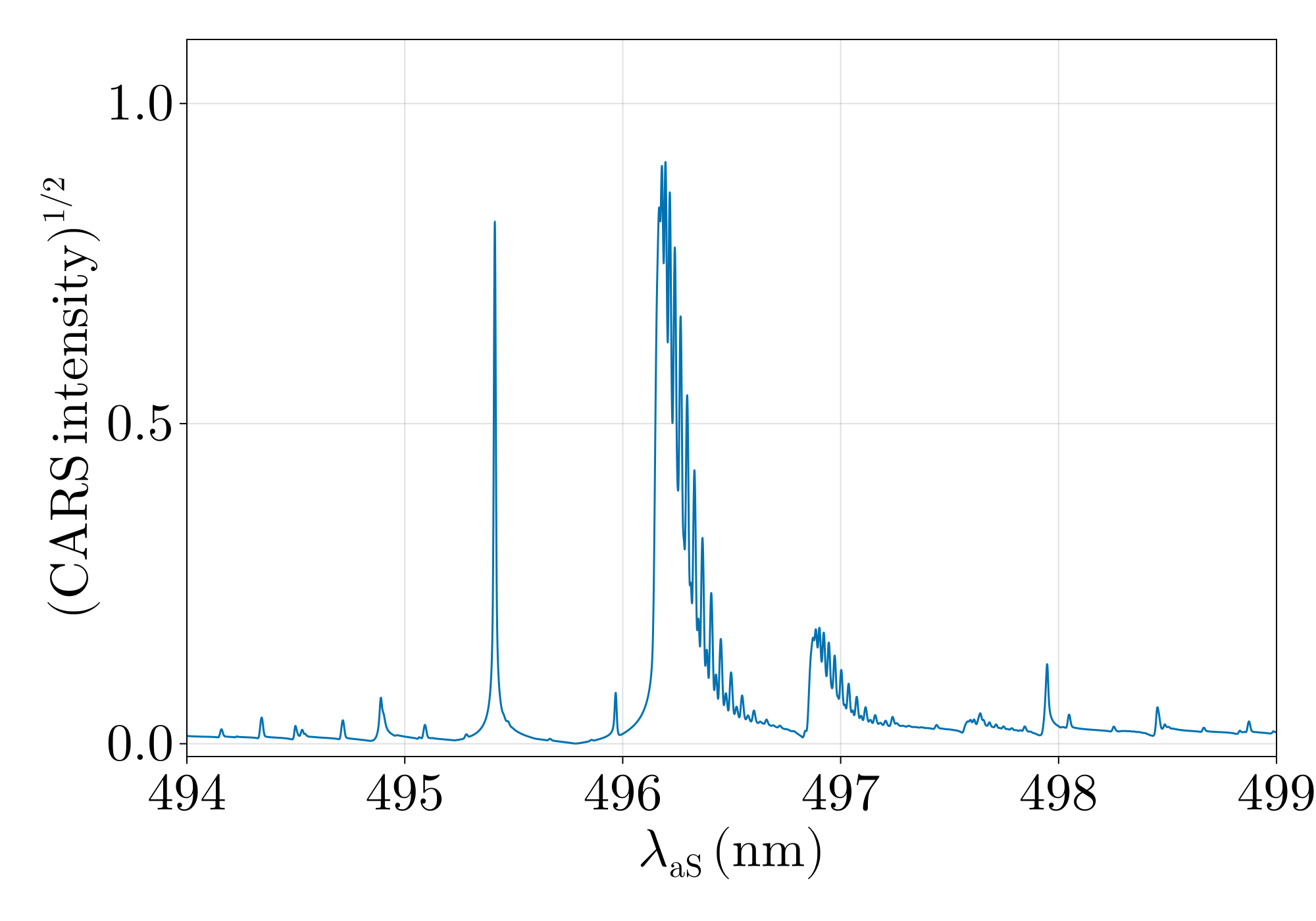

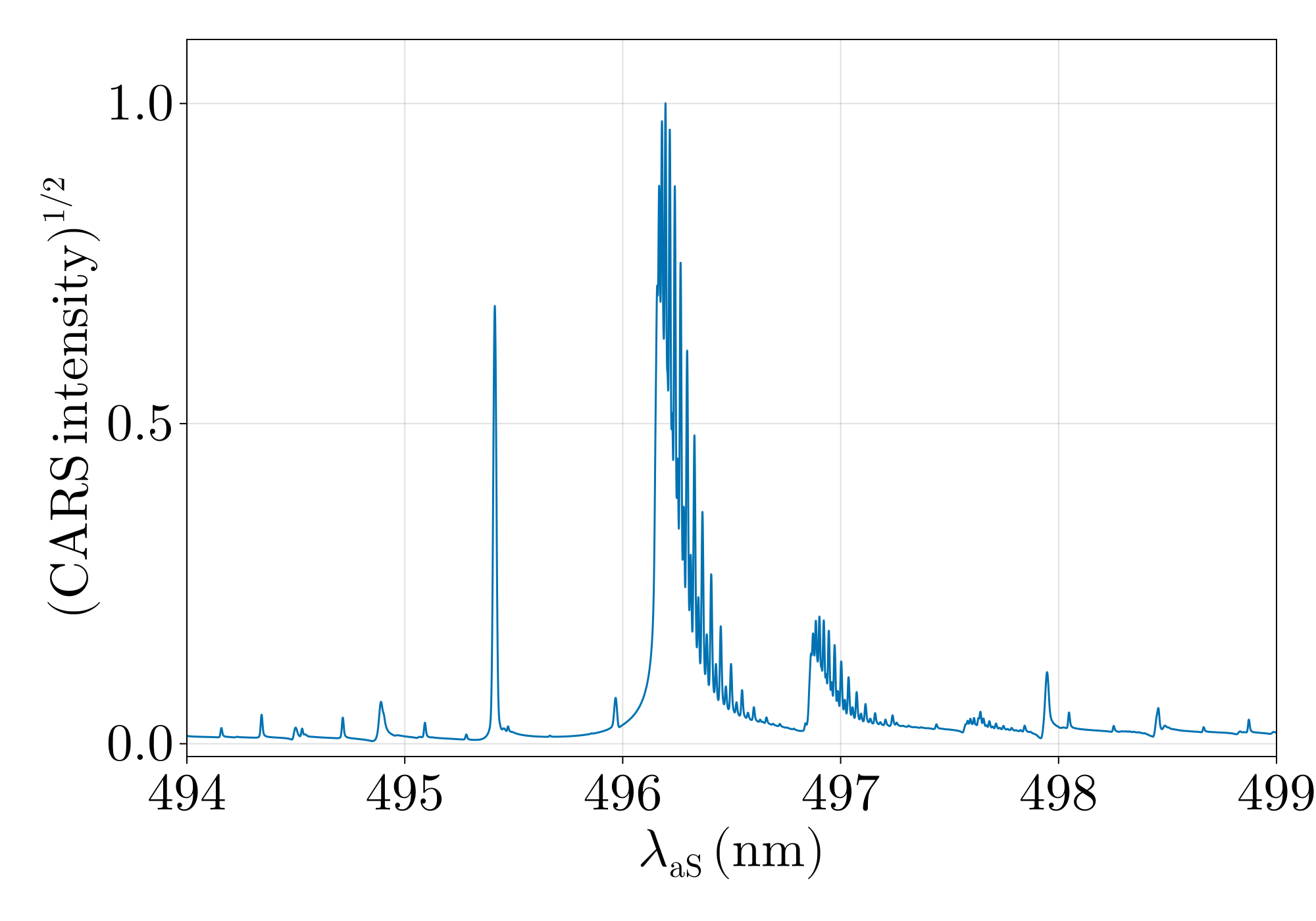

Example block output
